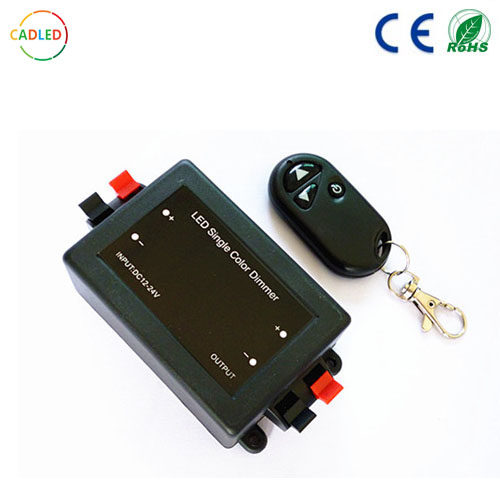

RF 3 Keys led dimmer
RF 3 Keys led dimmer

RF 3 Keys led dimmer

Item No.: CD-RFDM-C3
RF Single color dimmer is a controller that can adjust brightness infinitely and change to flash, its control mode is wireless control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.
INQUIRY PDF Format
Description
RF 3 Keys led dimmer


Working temperature  -20-60 ℃ Supply voltage DC5V,12V~24V optional
0utput 1 channel Output current <8A
External dimension L115× W56× H34mm Packing size L120x W84x H45mm
Net weight 110g Gross weight 130g
Static power consumption <1W Output power 5V:<40W, 12V:<96W, 24V:<192W








● Connection mode：Common anode
